    L.B. Bohle BFS Fluid Bed Systems for complete granulation, coating and drying

    products-servicesL.B. Bohle
    January 23rd 2023

    L.B. Bohle offers a distinctively integrated solution to the need for fluid bed systems, which have been used in the pharmaceutical industry for many decades for agglomeration of granules as that involves spraying aqueous or alcoholic granulation medium onto powder particles.

    L.B. Bohle BFS Fluid Bed Systems have played a leading part in helping the pharma industry transition away from the previously dominant top spray systems to the more efficient tangential spray system.

    Bohle Uni Cone® for perfect fluid bed processes

    Crucially, BFS can be used to carry out fluidize bed granulation, coating and drying as an end-to-end integrated process with no need for interim reconfigurations.

    This is largely thanks to the use of the patented Bohle Uni Cone BUC® process that uses a specially slotted air distributor plate in combination with a single displacement cone to achieve complete fluidization of the particles by setting up a tangential particle motion that leaves a uniform film, e.g. on pellets, without any particle twins.

    Bohle Uni Cone delivers other benefits besides. Since the fluidized particles or granules move tangentially at relatively low fluidization height, they do not require a high-volume expansion. This reduces the required installation height, saving costs and production floor space.

    At least six filter elements of the BFS can be cleaned separately to ensure air flow though the product bed remains uninterrupted.

    Other Uni Cone BUC® benefits include:

    • Narrower particle size distribution (PSD) and formation of spherical granules
    • Frameless product bottom plate design for easier and faster cleaning
    • Inspection of air plenum through the back pipe
    • Avoidance of cross contamination in the bowl inlet
    • Safer operator location and de-installation using in-wall built lifting column

    BFS range and benefits

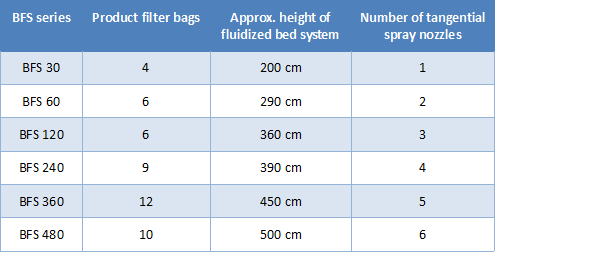

    L.B. Bohle offers its BFS fluid bed systems in a range of different sizes and technical designs (see table below for main features and variations). Across the range, these BFS systems offer precise and convenient PLC controlled touch panel operation.

    For the drying process, the BFS fluid bed system can be equipped with an online moisture measurement system using NIR technology (similar to infra-red analysis). This innovation makes it possible to identify the current moisture level, precisely and reproducibly, during the granulation and drying process.

    All BFS series machines offer a series of other tangible granulation user benefits that include:

    • Complete fluidization of particles
    • Even film coating, no twin formation
    • Integration of PAT, NIR and WIP
    • Patented filter cleaning – patented diffuser
    • Lowering of filters via electric drive
    • Easy-to-remove distributor plate
    • Low installation height, efficient space utilization
    • Pressure surge resistance up to 12 bar- optimum conditions for high containment applications

    Resources

    Click on Fluidized Bed Granulator & Fluidized Bed Dryer BFS   for further information.
    Click on Bohle Fluid Bed System – Multipurpose Equipment for Drying,
    Granulation and Coating
      to access product brochure download.
    Click on Whitepaper on  Fluid Bed Granulation  and Drying to access download (login required).
    Click on Granulation with the Bohle Fluid Bed Granulator to watch YouTube-Video.
    Visit our Technology Center and Service Center virtually in a 360° tour.

    PRODUCT PORTFOLIO

    Machinery for Your OSD Production

    FREE DOWNLOAD
    L.B. Bohle BFS Fluid Bed Systems for complete granulation, coating and drying

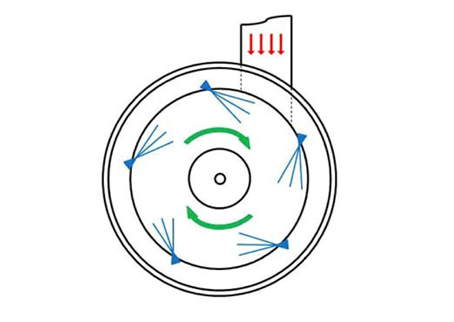

    L.B. Bohle Uni Cone BUC® system uses a single central cone and tangential spray nozzles to create a swirling coating system.

    L.B. Bohle BFS Fluid Bed Systems for complete granulation, coating and drying

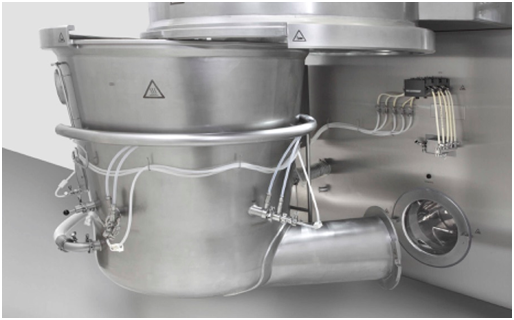

    L.B. Bohle BFS fluid bed systems feature in-wall installation and safer remote operator positioning.

    L.B. Bohle BFS Fluid Bed Systems for complete granulation, coating and drying

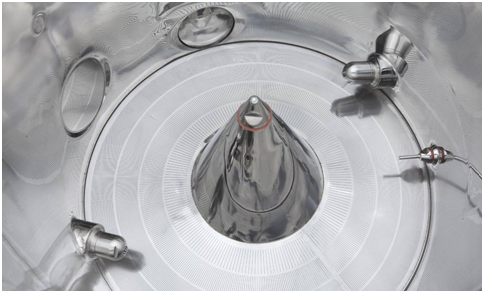

    L.B. Bohle Uni Cone BUC® system can achieve complete granulation and coating.

    L.B. Bohle BFS Fluid Bed Systems for complete granulation, coating and drying

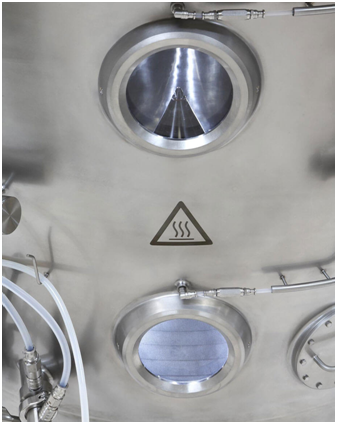

    View onto Fluid bed system process bowl with patented Bohle Uni Cone.

    L.B. Bohle BFS Fluid Bed Systems for complete granulation, coating and drying

    L.B. Bohle BFS fluidized bed systems are engineered for easy inspection, cleaning and maintenance.

    L.B. Bohle BFS Fluid Bed Systems for complete granulation, coating and drying

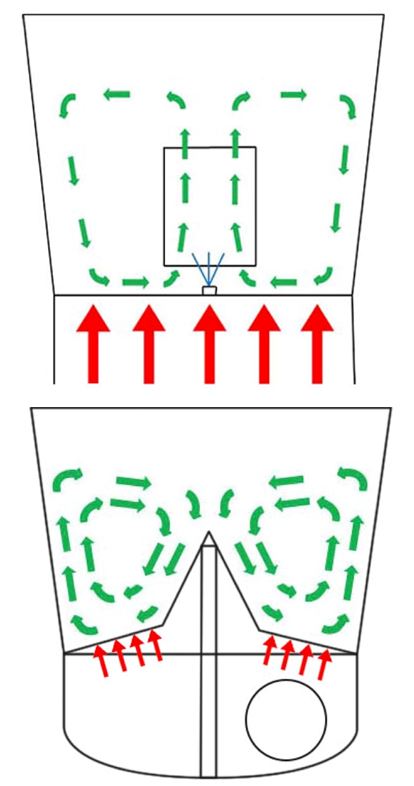

    Comparison of Fluidized Bed Equipment: Conventional Wurster system (top) creates a single stream air flow that radiates out from centre to sides of coating drum while the Uni Cone BUC® system creates a stronger multiple air stream that converges inward and around the central cone at lower fluidization height.
