Precision freezing and thawing with versatile HOF Pharma Blast Freezer

In the pharmaceutical and biotechnological industry, the speed and precision of rapid freezing processes are key to the cryo concentration of a product and therefore its quality. Along with rapid freezing, product quality also requires precise temperature control over the thawing process.

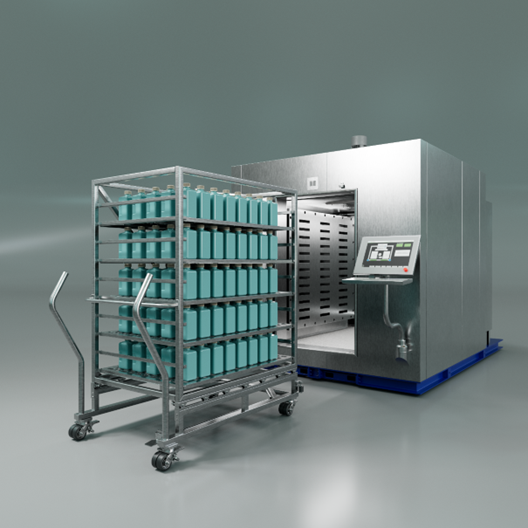

The HOF Pharma Blast Freezer meets both needs in one versatile solution that can handle vials, bottles, bags, and other container forms up to volumes of 300 liters. This versatility and high capacity allow the system to integrate seamlessly into a very wide range of production environments, offering high levels of investment security, scalability, and flexibility.

Meeting the challenges

Traditional freezing and thawing methods have some serious disadvantages, particularly in biologics and vaccine production, where slow freezing can cause ice crystal formation, damage cell structures and reduce product efficacy. Slow freezing also increases risks of batch inconsistency, due to temperature gradients.

Scalability is also a challenge, with need for systems capable of rapidly switching between pilot, clinical, and commercial scales, as well as a bewildering variety of container formats and volumes.

Further, FDA, EMA and other regulatory bodies demand validated, traceable processes for cGMP freezing and storage, which demand integration between precise temperature control and comprehensive data logging for process validation.

As with every other pharma process, freezing and thawing are subject to the same relentless demands for increased efficiency and sustainability, where traditional slow freezing methods often fall behind due to increased cycle times and reliance on high energy and non-sustainable refrigeration technologies.

Combined advantages

The HOF Pharma Blast Freezer meets all these challenges and delivers superior results in the freezing and thawing processes with a unique combination of advantages:

• Ultra-precise temperature control: The Blast Freezer can be programmed to undertake a fully mapped rapid freezing operation, down to -110^o Its efficient cabinet and refrigeration design ensure uniform temperatures across the whole process. The same precision and uniformity apply in reverse during rapid thawing, with the system capable of generating temperatures up to 40^o C.

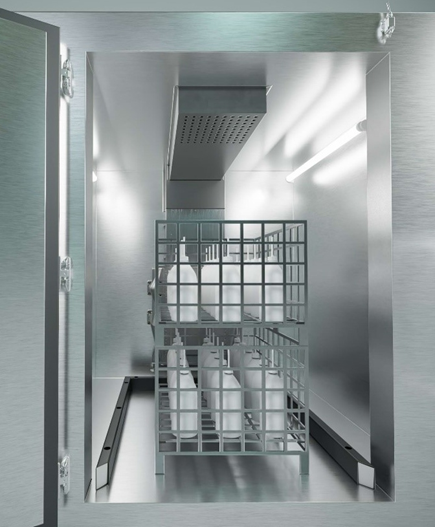

• Versatility: Whether bottles, bags, or containers: the HOF Pharma Blast Freezer processes a wide range of packaging units up to 300 liters in volume. The compact and hygienic stainless steel form factor, also available in full sterile version, makes the Pharma Blast Freezer easy to integrate across a wide range of non-classified and sterile environments.
• Sustainability: The Pharma Blast Freezer leverages HOF’s industry-leading CryoBlizzard technology that can use ambient air (R729). This allows to comply easily with recent F-Gas regulations on environmentally harmful refrigerants, making it climate-neutral, and requiring no additional safety measures. Furthermore, its advanced insulation and efficient cooling systems reduce energy consumption, underpinning future-proof production strategies.

Proven solution

The HOF Pharma Blast Freezer is a proven solution that is already in daily use and has been successfully implemented in customer projects. Besides this, a testing device is available at the HOF headquarters site to execute joint test runs with potential customers to identify whether the machine is able to fulfill particular applications or requirements.

As with all HOF systems, a dedicated project team supports the entire lifecycle: from planning and manufacturing to installation, commissioning, and training, with regular maintenance also part of the HOF Service+ package.

Resources

Click on HOF Pharma Blast Freezer for further information.
