PHCbi ULT Freezers

PHCbi’s Ultra Low Temperature (ULT) freezers offer high security storage of biomedical samples at temperatures as low as -86°C, or down to -150°C for cryogenic storage.

Ultra-cold storage is key to success in many bioscience applications that involve molecules such as proteins that become denatured at normal temperatures. Such samples may be irreplaceable and therefore security of cryogenic storage is a primary concern.

Specialized samples also demand specific environments and temperature ranges.  In contrast with a regular commercial freezer (temperature range -30°C to 0°C), ULT Freezers achieve temperatures of -86°C to -40°C, while cryogenic ULT freezers must offer temperatures down to -150°C. The technology, materials and refrigerants incorporated in PHCbi ULT and Cryogenic freezers are products of the company’s unrivalled expertise in the field, dating back to its pioneering -152°C cryogenic freezer, introduced in 1991 in response to a growing demand for cryopreservation solutions following medical and scientific advances in biotechnology and genetics.

PHCbi ULT Freezer ranges

Overall, ULT Freezers need to meet rigorous standards and comply with all key certifications. To reach the required temperatures and maintain a uniform environment, they require powerful freezing capacity with specialized protective insulation; rapid temperature recovery; highly effective user-interfaces, including doors, monitoring systems, and alarms; and clear and specific user protocols along with back-up systems for storage security.

In today’s challenging regulatory climate, ULT freezers must also provide minimal environmental footprint, energy efficiency, ease-of-use, and maintenance, as well as features to ensure operator safety.

The PHCbi ULT freezer range comprises six main product groups, each with its own distinctive selection of technologies, materials and features and all well-established and well-respected products in the world of life sciences that are renowned for their accuracy, reliability, and stability.

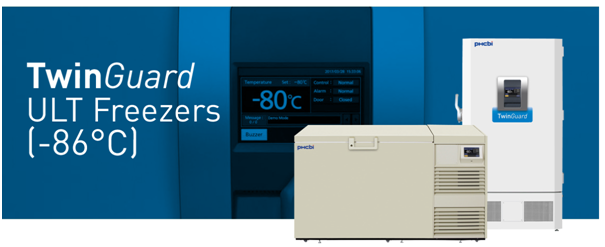

TwinGuard ULT Freezers

PHCbi TwinGuard ULT Freezers achieve temperatures of down to -86°C and feature double security for extremely valuable samples, such as those in the pharmaceutical and biotechnology sector, research institutes or blood and tissue banks. TwinGuard ULT freezers provide an unparalleled level of safety and added peace of mind using two independent refrigeration systems that reliably maintain an ultra-low temperature environment, even if an unexpected failure should occur in one cooling circuit.

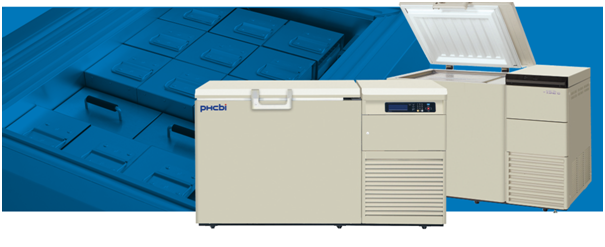

Cryogenic ULT Freezers

PHCbi Cryogenic ULT Freezers are specially designed for temperatures down to -150°C for applications with living cells, such as: tissues and cells in stem cell therapy, blood products, mesenchymal stromal cells for regenerative medicine and tissue engineering, tumor samples, artificial insemination, and IVF. The 231-liter MDF-C2156VAN and 128-liter MDF-1156-PE both offer unparalleled safety, reliability and uniform temperatures, incorporating advanced refrigeration technologies, ultra-efficient insulation, and sophisticated alarms and safeguards. Both models use proprietary binary mixed refrigerants to avoid use of environmentally harmful chlorofluorocarbons (CFCs).

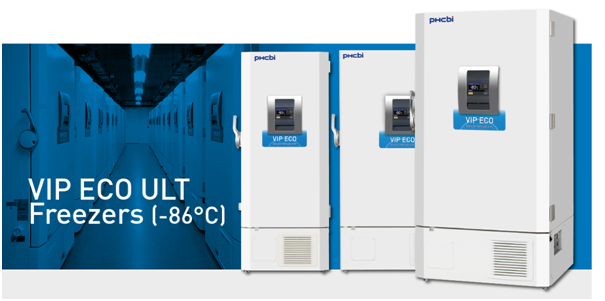

VIP ECO ULT Freezers

VIP ECO ULT Freezers achieve temperatures of -86°C while providing an energy efficient, environmentally friendly ULT storage solution. PHCbi’s ECO lines feature advanced hydrocarbon refrigerant technology to provide energy-efficient and environmentally friendly cold storage equipment options. The addition of outstanding VIP Plus insulation has allowed ECO efficiencies to be applied to ultra-low temperature freezers.

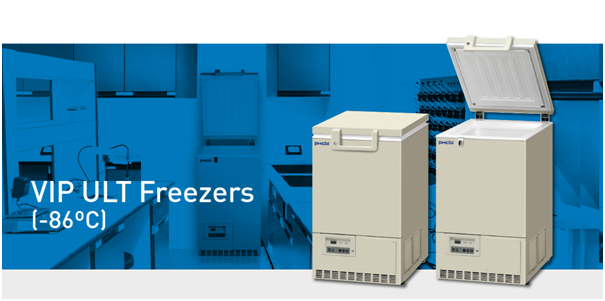

VIP ULT Freezers

VIP-ULT-freezers also feature specialist VIP Plus insulation to offer temperatures as low as -86°C with reduced energy consumption, making them ideal for sample storage in repositories, hospitals, clinics, and medical research facilities.

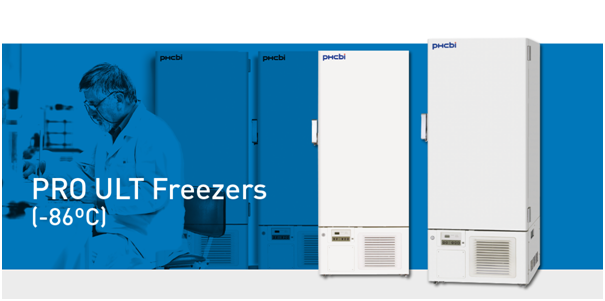

PRO ULT Freezers

PHCbi’s PRO ULT Freezers cool at -86°C and are ideal for long-term preservation of biologicals, blood components and various cell lines.

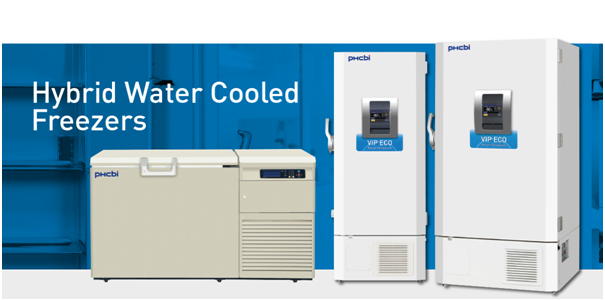

Hybrid Water Cooled Freezers

Hybrid Water Cooled Freezers can cool to -150°C and feature hybrid water cooled technology that together with VIP Plus insulation, improves compressor efficiency.

Resources

Click on Security at Ultra Low Temperatures to explore whole PHCbi ULT Freezer range.
Click on TwinGuard ULT Freezers for detailed product information.
Click on VIP ECO ULT Freezers for detailed product information.
Click on VIP ULT Freezers for detailed product information.
Click on PRO-ULT Freezer for detailed product information.
Click on Cryogenic ULT Freezers for detailed product information.
Click on Hybrid Water-Cooled ULT Freezers for detailed product information.
