    PHCbi TwinGuard ULT Freezer – MDF-DU502VX-PE

    products-servicesPHC Europe BV
    July 14th 2022

    The MDF-DU502VX-PE TwinGuard ULT Freezer is the mid-range unit of PHCbi’s range of TwinGuard ULT ultra-low temperature freezers, offering an ideal blend between safe long-term storage capacity, price, footprint and user friendliness.

    TwinGuard ULT Freezers meet life sciences industry demands for safe, long-term storage for the most high-valued materials by using double independent refrigeration systems, combined with optional liquid CO2 back-up systems, to provide unmatched protection.

    TwinGuard freezers are also designed to minimize energy consumption, reduce environmental impact and save money.

    MDF-DU502VX-PE Features

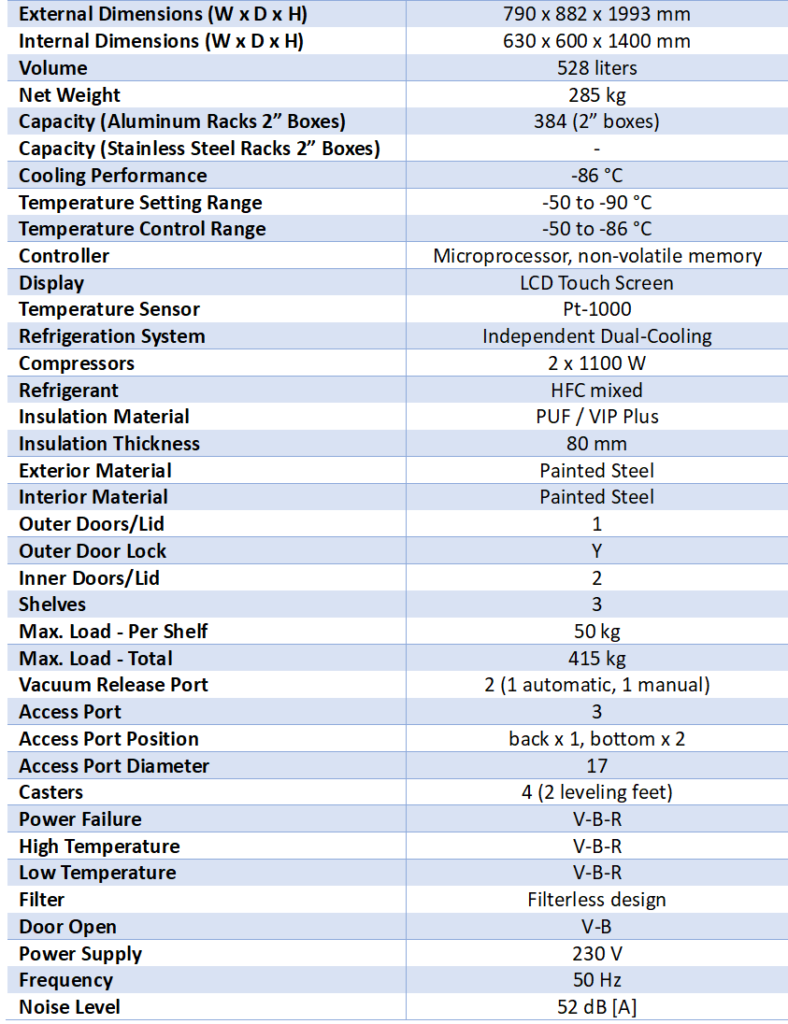

    The MDF-DU502VX-PE TwinGuard ULT Freezer offers 528 liters of effective storage capacity and ultra-low temperature freezing down to -86C. Its features include:

    • Dual Cooling System: The double independent cooling systems allow TwinGuard freezers to maintain reliable and uniform -86ºC ultra-low temperatures with highest sample security levels. In any case of one system failing, the other circuit will maintain -70ºC temperature to keep samples safe while service is arranged.
    • Efficient Sample Storage: The combination of VIP PLUS vacuum insulation panels and an enhanced cabinet design with insulated outer door, ensures optimum temperature uniformity, while the reduced wall thickness maximizes storage capacity.
    • Flexible shelf layout: Multiple shelf configurations, with racking options, support a variety of storage permutations, allowing organization of samples in multiple inventory racks.
    • Intelligent Interface: EZlatch operation makes access to stored samples even easier. A color LCD touch panel allows full user control, even with gloved hands, while the USB port makes transferring logged data to a PC convenient. Sophisticated alarm and notification options significantly extend time to react to any sudden mechanical failures, while full data logging supports high security applications such as pathogenic research.


    Compared to conventional ULT freezers, the MDF-DU502VX-PE TwinGuard ULT Freezer offers clear advantages in enhanced sample protection, lower running costs, faster temperature pull down, and longer service life.

    Defined benefits include:

    • Extreme secure Dual Cooling System
    • VIP PLUS insulation
    • Flexible shelf layout
    • Intelligent Interface
    • Innovative Cabinet Design
    • Cost-saving and environmentally friendly sample storage
    • Energy efficiency
    • Lower running costs
    • Full Class IIa Medical Device Certification (see Resources).

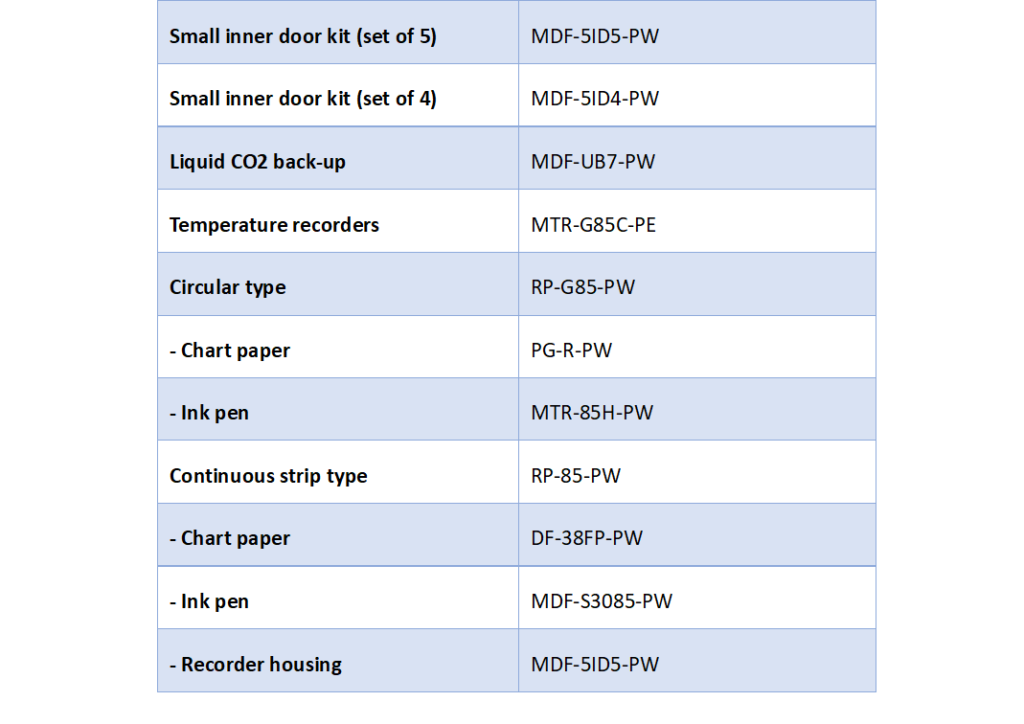

    Accessories and Options


    Click on MDF-DU502VX-PE to download product brochure.
    Click on PHCbi Class IIa medical device certification for further information.


    Innovative Partners for Life Sciences Development

    PHCbi TwinGuard ULT Freezer – MDF-DU502VX-PE

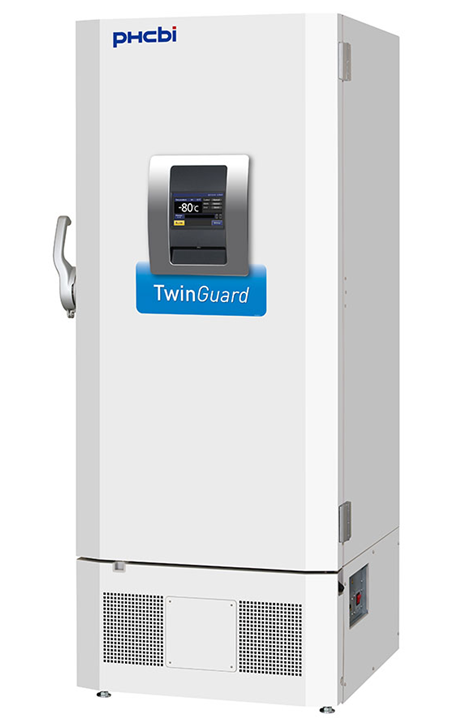

    PHCbi MDF-DU502VX-PE TwinGuard ULT Freezer offers almost 530 liters of ultra-low temperature sample storage on a 79 x 88cm footprint.

    PHCbi TwinGuard ULT Freezer – MDF-DU502VX-PE

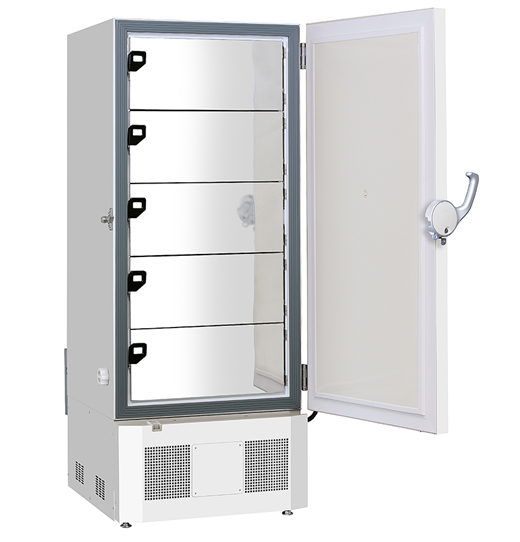

    PHCbi MDF-DU502VX-PE TwinGuard ULT features individually opening inner doors for greater thermal efficiency and flexible sample organization, as well as latches that can easily be operated with gloved hands.

    PHCbi TwinGuard ULT Freezer – MDF-DU502VX-PE

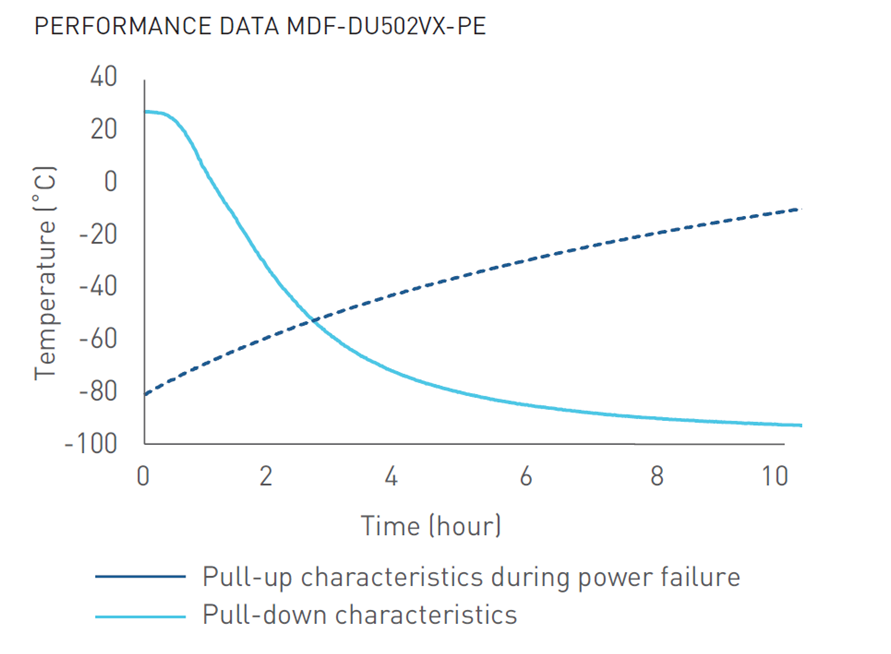

    Advanced refrigeration systems and cabinet engineering allow MDF-DU502VX-PE to deliver fast temperature pull down.
