iMini USB PDF Data logger


iMini USB PDF Data logger


IntroTech Logo

Products & Services | IntroTech B.V

Overview

IntroTech’s compact and low cost iMini USB PDF data loggers help ensure total protection for temperature-sensitive consignments throughout their journey.

Attached to the consignment, the iMini logger can alert the user when permitted temperatures are being exceeded and provide downloadable verifiable documented data that they have remained within required temperature limits at every stage.

These economical but highly capable devices simply plug into a standard USB port for initial programming and to download PDF format journey reports.

Alarm functions will provide instant notification when predefined high to low temperature limits are in danger of being exceeded.

Features

The ultra-compact Escort iMini data logger is provided in a waterproof pouch to attach to carton and includes the following features:

  • Plug and play functionality
  • Auto generates PDF reports across all standard PC platforms
  • Compatible with Cloud-based facility monitoring systems
  • Large 8Kb memory capacity (more than 7,900 readings)
  • Pre-programmable to customer specifications
  • Five LEDs to provide instant temperature status (High-High, High, Normal, Low, Low-Low)
  • Minimum one year shelf life

Specifications

  • Plug and play functionality
  • Accuracy: ±0.3oC (-10oC to +80oC)
  • Resolution: 0.1oC
  • Program Interval 5 seconds to 17 hours
  • Time Accuracy: ±1 hour per year
  • Temperature Range: -40 ⁰C to +80 ⁰C (-40 ⁰F to +176 ⁰F)
  • Temperature Accuracy: ±0.5oC (-40oC to -10oC), ±1oF (-40oF to +14oF); ±0.3oC (-10oC to +80oC), ±0.6oF (+14oF to +176oF)
  • Resolution: 0.1oC (0.1oF)
  • Sensor Response Time: T90 of 5 minutes in moving air
  • Bookmarks: up to 8
  • Start Options: Push button and/or timer
  • Start Delay: 1 minute to 99 days
  • Stop Options: Timer or stop button (can be disabled)
  • Dimensions: 68mmx37mmx5mm (without sleeve); 81mmx52mmx5mm (with sleeve)
  • Weight: 14 g
  • Battery: 3.0V
  • IP Rating: IP 65
  • Warranty: 1 Trip
  • Calibration 3 point NIST traceable (optional)
  • Interface USB
  • Software: Console Plus
  • Default File Formats: PDF, CVT
  • Data Export: TXT, CSV & CVT

Standards and certification

The iMini is available with either a factory-issued statement of accuracy or a NIST traceable certificate of calibration.

The iMini is certificated to ISO9001: 2008, CE, BSI and RoHS standards.

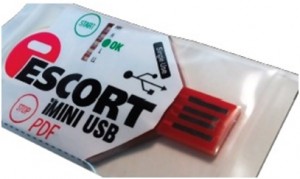

 iMini supplied in waterproof pouch

iMini supplied in waterproof pouch

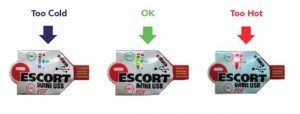

Four stage alarm

Four stage alarm

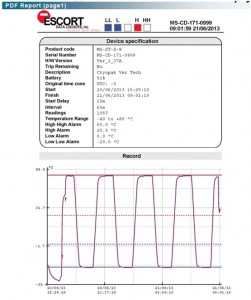

Downloadable PDF report

Downloadable PDF report

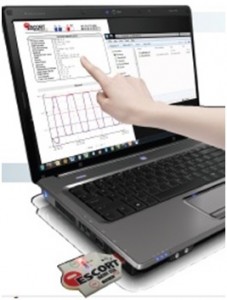

Plug and play operability

Plug and play operability

Resources

Click on iMini USB PDF Data logger for more information.
Click on IntroTech B.V to contact the company directly


Supplier Information
Supplier: IntroTech B.V
Address: Imbosweg 30, 7371 DD Loenen, Netherlands
Tel: +31 55 505 8383
Fax: +31 55 505 8333
Website: www.introtech.eu
