    Huxley Bertram Adhesion Punch

    products-servicesHuxley Bertram Engineering Ltd
    May 18th 2023

    Huxley Bertram offers an Adhesion Force Measuring Punch (Adhesion Punch) that can be used for detailed studies of the adhesion force when making tablets.

    Tablet quality problems are commonly associated with the adhesion of powder particles to the punch tip. New and existing formulations can be characterised by measuring the adhesion force between the tablet and the upper punch when it leaves the top surface of the tablet following compaction.

    The HB Adhesion Punch is designed for use on the Huxley Bertram HB100 or HB 50 Compaction Simulators, and can also be used with the simple Huxley Bertram Tablet Test Fixture.

    Adhesion Punch features

    The Adhesion Punch is designed to measure tensile forces of just a few Newtons, with a calibration range of 0-30N. At the same time, it is capable of sustaining high compaction loads and generating force capacity in compression of up to 30 kN.

    Tips are easily changed to allow different coatings or different surface features to be tested and the use of Standard B sized body allows use across a range of platforms as well as allowing the punch to be mounted in Huxley Bertram’s quick change tool holder.

    The punch’s measuring tip is designed to be shielded against die wall effects, which can distort readings.

    Resources

    Click on Huxley Bertram Adhesion Punch for further information.
    Click on Compaction Simulation for information on Huxley Bertram compaction simulators.

    TRENDING ARTICLE

    A poster from the Compaction Simulation Forum argues for a controlled rate of porosity reduction to study compaction speed effects

    FREE DOWNLOAD
    Huxley Bertram Adhesion Punch

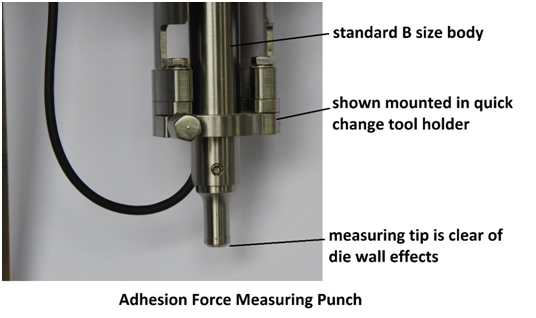

    Adhesion punch is designed for maximum compatibility and ease of mounting.

    Huxley Bertram Adhesion Punch

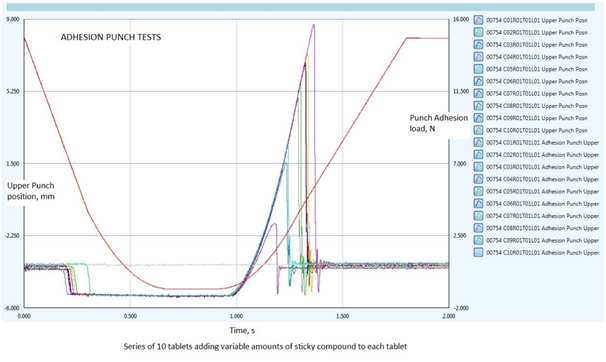

    Output measurement using Huxley Bertram HB100 instrumentation and software shows clean data trace of adhesion force from the punch, produced with high resolution. The test shown here used variable amounts of sticky compound in each tablet to produce a series of force plots (ten position traces show as one line).

    Huxley Bertram Adhesion Punch

    The Adhesion Punch is one of a wide range of tools available for the Huxley Bertram HB100 Tablet Press Simulator, shown here in fully contained version for working with highly active HPAPI powders.
