SYSTAG PPR Parallel Pressure Reactor System
Running processes in parallel can reduce time and increase reproducibility: two key issues in chemical product development. To meet this need, SYSTAG has developed the innovative PPR (Parallel Pressure Reactor) system in partnership with Büchi AG. The system is both modular and configurable to meet a wide range of customer needs. The PPR can interconnect up to six pressure reactor vessels in individual heating and cooling blocks that can be controlled individually or run together in a fully automated process.
The system enables rapid and efficient hydrogenations and catalyst screenings to be performed in complete safety.
This is partly due to comprehensive control parameters that range from pressure, flow and gas consumption to stirrer speed and safety limits. Control parameters can be varied between reactors.
Combining ultra-high quality Büchiglas reactors with proven user-friendly automation solutions developed by SYSTAG also enhances safety, guaranteeing safe processes across a wide range of applications.
PPR Features
The PPR System consists of up to six pressurized reaction vessels in individual heating / cooling blocks that can be controlled individually or together as part of an integrated system.
Each reactor block is fitted with a lifting /lowering system, individual temperature control up to 300oC and fast action safety closure.
PPR can be configured on demand and operated in manual or fully automated modes.
- In Manual operation, the software controls the reactor hardware and logs all process data.
- In Automated mode, the control software allows full process automation including dosing of different gases or liquids. For fully automated processes, a recipe editor is included in the software to edit existing settings and to define completely new processes. The PPR system also allows manual interventions in recipes during a process.
Multiple safety features guarantee safe hydrogenations and other processes.
An automated sampling system allows taking up to 4 samples on each reactor even under pressure and cross-contamination free.
All important parameter data are clearly displayed, with every single process step shown on the graphic display. Drag-and-drop functionality allows recipes to be easily defined and modified. The software is also GxP compliant with exportable data.
Applications
PPR supports a wide range of laboratory applications including:
- Chemical reactions
- Hydrogenations in parallel
- Catalyst testing in parallel
- Process development and scale up studies
- Carbonylation by CO
- Carboxylation by CO2
- Decarboxylation
- Friedel-Crafts Acylation
The system can also be adapted to perform ethoxylatons, general gas reactions at constant flow (CO, CO2, Ethylene, O2, NO), Design of Experiment (DoE) and Quality by Design (QbD) studies.
Benefits
PPR offers a compelling series of benefits:
- Totally reproducible catalyst screening and hydrogenations in reduced time with total safety
- Individual or parallel temperature, pressure and other operation settings for maximum flexibility
- Highly configurable hardware and software from basic reactions to full parallel setup, including dosing
- Full recipe control for highest reproducibility
- Reactor volume of 50ml to 300ml closely aligns with typical preparative reaction sizes, making the PPS an ideal tool for catalyst screening
- Fully GxP compliant system with full documentation and data logging/export functions
- The PPR System supports hydrogen or other gas dosing with constantly logged gas consumption
- An automatic sample function is available, to take samples without disturbing the reaction, increasing speed and efficiency.
Specifications:
| Hardware | |
|---|---|
| Reactor volume: | 50 ml – 300ml |
| Number of Reactors: | 2 – 6 |
| Pressure: | -1.0 (FV) to +100 bar |
| Temperature: | -20 °C to +300°C (other on request) |
| Material: | Stainless steel /Hastelloy / Tantalum / PTFE inliner |
| Stirrer drive: | High torque motor with powerful magnetic coupling (75Ncm) |
| Agitator speed: | 0-2500 rpm, continuously adjustable |
| Safety rupture disc: | 100bar |
| Cover: | Six opening (for Pt100, dip tube, valves, etc.) |
Functions: Process setting & control
| Software | |
|---|---|
| Reactor volume: | 50 ml – 300ml |
| Operating modes: | Manual to fully automated |
| GxP compliance: | GxP compliance:Full documentation and data export |
| Control parameters: | Reaction pressure / temperature, gas / liquid flow, gas consumption, stirrer speed, safety limits.(double point) |
| Available single automation steps: | Inert gas purging, leakage control, gas purging (nitrogen / active gas) |
| Reaction control modes: | constant flow, constant reaction pressure, etc. |
| End criteria to stop hydrogenation: | Total gas consumption, minimal gas flow, time over event |
| Charting: | Individual for each reactor, showing actual gas flow (nL/min), Gas consumption, process temperature, pressure, rpm, feed,.. |
| User interface: | Setting up recipes: drag & drop editor |
| User interface:Recipe modifications: | “on the fly” using ‘as if’, ‘then’ ‘else’, logic, loop and, jump back to phase |
Options
The extensive standard configuration of the pressure reactors and control system can be further enhanced with a number of options tailored for specialist requirements. These include:
- Automated sampling: contamination free taking up to four samples from each reactor. Sampling can be manually controlled or automated from recipe
- Liquid dosing: via balance (at up to 275 bar) or from SS316 or PEEK corrosion resistant metering pump, flow rates 0.003 to 40 ml/min
- Reactor gas-stirrer: for homogenous gas dispersion
- Catalyst basket
- Burettes
- Software:< IQ/OQ and customized software extensions are available on request
PPR can be expanded up to six parallel reactor modules

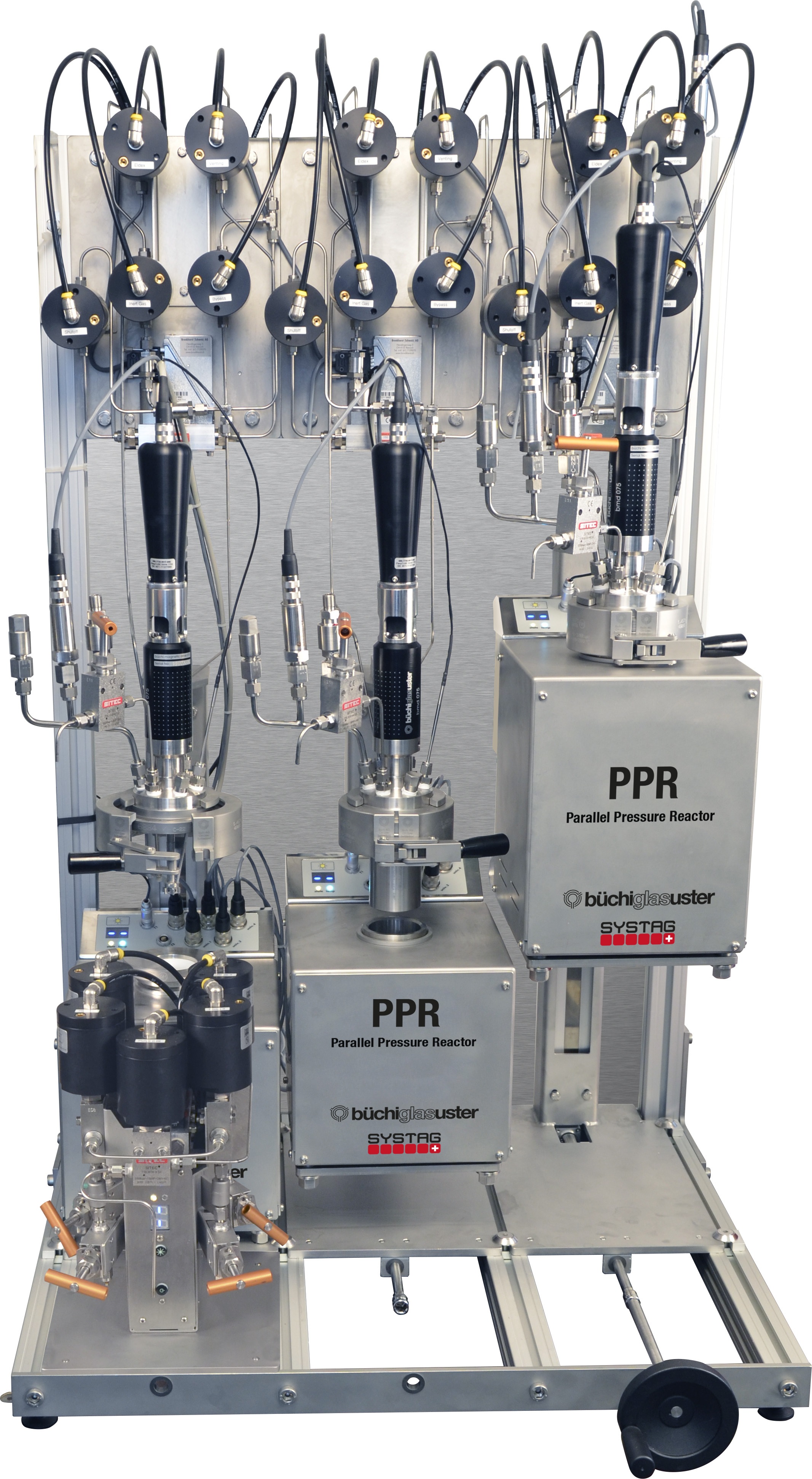

Three-reactor PPR system showing lift/lower mechanism

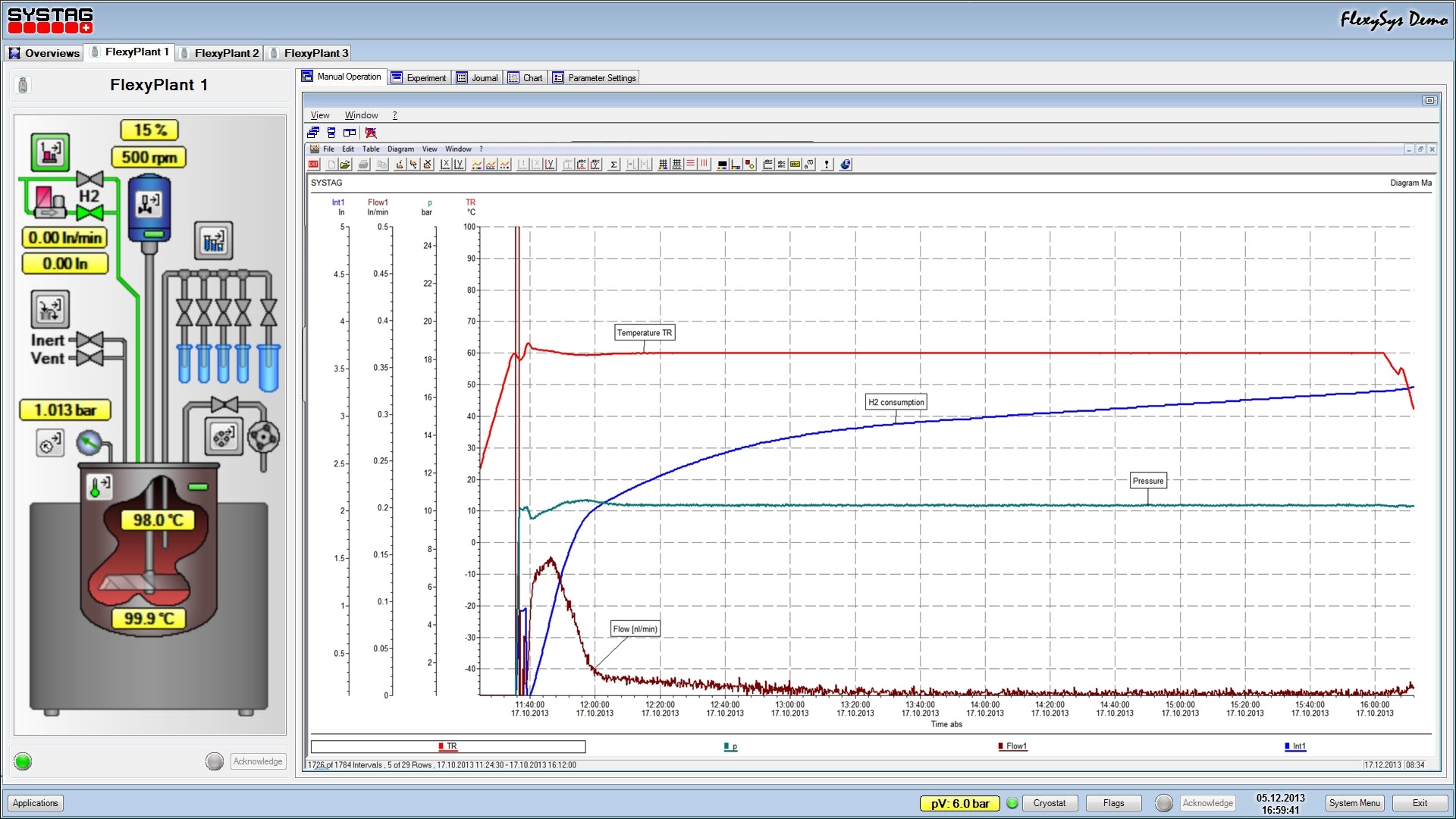

Sample graphic display showing single reactor control and online temperature, pressure, H2 consumption and flow data
