SYSTAG Automated Lab Reactors

Automated laboratory reactor systems maximize the yield of information in Research and Development enabling invaluable insights to be gained with every experiment

SYSTAG automated lab scale and bench top reactors and reactor control systems have designs that are deeply rooted in chemical and pharmaceutical development. These innovative solutions enable chemists to obtain more information per experiment, recognize complex relationships faster and exchange data with other scientists quickly and easily.

SYSTAG automated lab reactor solutions

SYSTAG’s range of automated lab reactor solutions, including FlexyCUBE, FlexyPAT, and FlexySys, are named for their inherent versatility and adaptability, with modular architecture and plug and play interfaces that allow them to be swiftly configured to interface with existing laboratory equipment and for system layout to be modified and updated as required.

The modular semi-batch reactor control systems FlexyCUBE and FlexyPAT are optimized for automated chemical synthesis, sharing an easy-to-use interface for the precise control of all reaction variables. The innovative recipe control allows maximum reproducibility of experiments with consistent flexibility. All reaction parameters are permanently recorded and visualized at the touch of a button. The integrated safety concept allows unattended 24/7 operation.

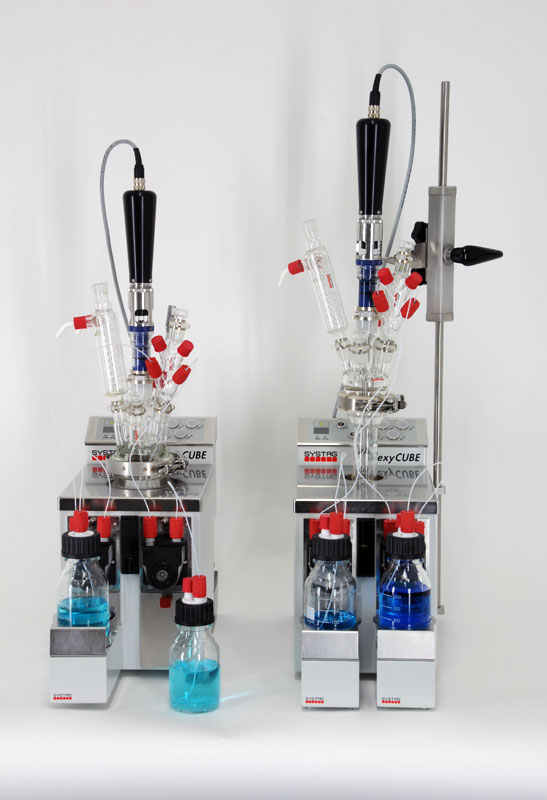

• FlexyCUBE controlled lab reactor automation platform is focused on parallel process optimization in application areas such as quality risk analysis and DoE Design of Experiments. It supports a wide range of advanced chemistry reactions including hydrogenations, Grignard and Friedel-Crafts reactions, acetylations, nitrations and esterifications. It allows up to 6 steel or glass reactors to be controlled from a single PC individually or in parallel for DoE. While usually run in recipe control mode, it always offers the choice of manual operation and manual intervention at any time.
• FlexyPAT brings flexible process automation technology (PAT) to lab-scale reactions with a modular concept that facilitates the integration of existing hardware to reduce cost and accelerate implementation. It is ideal for PAT applications such as scale-up or scale-down, morphology, or thermal-physical process technology. This is a turn-key system that allows a single PC to operate several jacketed reactors with user-friendly system configuration through integrated sensor identification. Standard functions include gravimetric or volumetric dosing, temperature control of jacket and reactor, stirrer control, pH measurements, manual or recipe control, data capture and automatic laboratory reporting.

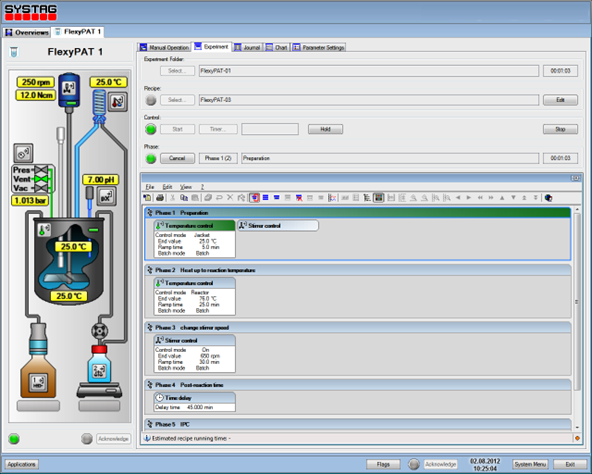

• FlexySys controlled lab reactor software provides an automation technology interface for any laboratory reactor employed in the chemical and synthetics sector. The software platform features an intuitive plant synoptic that make it easy for anyone to use it, along with predefined operating procedures for simple and safe operation. The ‘Ready, Steady, Go’ design philosophy emphasizes clear visualization of overall system status and operating parameters, along with editable online charts of reaction data and continuous automatic recording and documentation. The very latest add-on feature enables the central monitoring of many reactors and ensures simple control via mobile phone/smartphone etc. regardless of where you are.

Integrated lab automation from a single source

SYSTAG’s portfolio of automated lab reactor solutions provide laboratories with the scalability and reliability needed for seamless transition from experimentation to full production users, with the confidence to take innovations from the lab to the pilot plant.

They allow researchers to reshape progress in chemical synthesis using DoE and Quality by Design (QbD) methods to explore multiple reaction pathways simultaneously on a parallel reactor platform.

FlexyCUBE, FlexyPAT, and FlexySys can be adopted individually or in combination to provide a single, integrated platform that supports research chemists to accelerate their developments, optimize reaction conditions and maximize output.

Resources

Click on SYSTAG FlexyCUBE to download product catalog.
Click on SYSTAG FlexyPAT to download product flyer.
Click on SYSTAG FlexySys to download product flyer.
