B Medical Systems’ Solar Direct Drive Vaccine Refrigerators & Ice-Pack Freezers

B Medical Systems offers a wide range of Solar Direct Drive Vaccine Refrigerators and Ice-Pack Freezers as EU certified Class I medical devices designed to meet the challenges of vaccine delivery in tropical countries.

These solutions are designed to keep vaccines at constant safe temperatures, even at local administration points that are in hot, humid environments. Where electrical supply is unreliable or non-existent, these models can instead be directly powered by multiple solar panels.

Meeting environmental challenges

The Solar Direct Drive product range is engineered to resist harsh environments: they are designed to operate in tropical conditions with temperatures reaching as high as 43°C, and are rust-free and extremely robust thanks to their rotomoulded bodies.

They are provided with Humidity Control to eliminate condensation issues and with best-in-class manufacturer guarantees, including lifetime warranty against corrosion.

Ergonomic designs

B Medical Systems’ Solar Direct Drive Vaccine Refrigerators are designed to simplify operations in challenging conditions with features focusing on convenience:

• Easily replaceable and washable door gaskets
• “Plug and play” installation of the solar generators
• No battery or regulator
• External temperature display
• 24/7 real-time remote monitoring
• Easy maintenance
• 10 years of international manufacturer’s warranty, and lifetime warranty against corrosion

Safety & Traceability

B Medical Systems also ensures safety and traceability for the doses stored in their Solar Direct Drive Vaccine Storage solutions by including important features such as:

• Strong insulation offering extended holdover time in the event of minimal or no sunlight
• Silicone gaskets and lockable clasps for tight closures and tamper/theft protection
• Audio-visual alarm system with remote transmission
• Remote temperature monitoring solution, comprising data loggers and a digital platform

Solar Direct Drive Vaccine Refrigerators

B Medical Systems offers a range of seven Solar Direct Drive Vaccine Refrigerators of varying sizes and specifications. Our vaccine refrigerators ensure the safe storage of vaccines at temperatures ranging from 2°C to 8°C and most of them are designed to operate reliably in ambient temperatures up to 43°C. All models have Grade A Freeze Protection and are WHO certified. Examples of B Medical Systems products:

• TCW15RSDD:
  – Vaccine storage capacity: 16 litres
  – WHO PQS Code: E003/067
• ULTRA16SDD:
  – Vaccine storage capacity: 16 litres
  – WHO PQS Code: E003/090

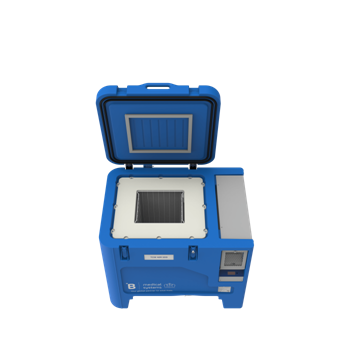

• TCW40RSDD:
  – Vaccine storage capacity: 36 litres
  – WHO PQS Code: E003/068
• TCW80SDD:
  – Vaccine storage capacity: 80.5 litres
  – WHO PQS Code: E003/121
• TCW3000SDD:
  – Vaccine storage capacity: 156 litres
  – WHO PQS Code: E003/030
• TCW3043SDD:
  – Vaccine storage capacity: 89 litres
  – WHO PQS Code: E003/045
• TCW4000SDD:
  – Vaccine storage capacity: 220 litres
  – WHO PQS Code: E003/093

Solar Direct Drive Vaccine Refrigerators & Ice-Pack Freezers

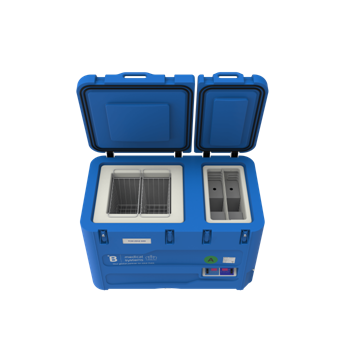

B Medical Systems also offers four Solar Direct Drive vaccine refrigerator storage solutions that include additional ice-pack freezer modules, allowing them to reach sub-zero set temperatures able to freeze ice-packs for a variety of uses, including the transport of vaccine doses until the last mile. These products are:

• TCW15SDD Solar Direct Drive Vaccine Refrigerator & Ice-Pack Freezer:
  – Vaccine Storage Capacity: 16 litres
  – Freezer Gross Volume: 2.4 litres
  – WHO PQS: E003/077
• TCW40SDD Solar Direct Drive Vaccine Refrigerator & Ice-Pack Freezer:
  – Vaccine Storage Capacity: 36 litres
  – Freezer Gross Volume: 4.8 litres
  – WHO PQS: E003/042
• TCW2000SDD Solar Direct Drive Vaccine Refrigerator & Ice-Pack Freezer:
  – Vaccine Storage Capacity: 99 litres
  – Freezer Gross Volume: 42 litres
  – WHO PQS: E003/035
• TCW2043SDD Solar Direct Drive Vaccine Refrigerator & Ice-Pack Freezer:
  – Vaccine Storage Capacity: 70 litres
  – Freezer Gross Volume: 42 litres
  – WHO PQS: E003/043

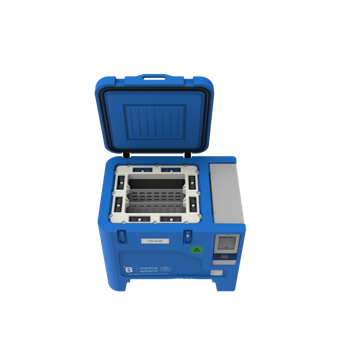

In addition, to further support these solutions, B Medical Systems also offers the TFW40SDD Solar Direct Drive Icepack Freezer. This product is fully designed for the freezing and storage of up to twenty 0.6 litre ice-packs to support other portable systems, and is able to reach the set temperature of -5°C, even in hot zones reaching temperatures as high as 43°C.

Resources

Click on B Medical Systems Solar-powered Vaccine Refrigerators & Ice-Pack Freezers for detailed product information.
